Solitaire Narrow Web Slitter Rewinder

Big performer with a tiny footprint

As sophistication in the narrow web industry expands, so should the ability to slit and rewind narrow web, particularly with the range of materials that a narrow web converters now use.

That’s why the Solitaire series of narrow web duplex slitter rewinders was developed to handle a wide range of products, from films through to papers, laminates and aluminium foils

Ashe Logo
Find out more

Enquiry

If you are interested in finding out more about the [page_title] , please fill out the following form and a member of our team will be in touch with you soon.

How it works

SolitaireNarrow-Web Duplex Slitter Rewinders

As the sophistication in the narrow web industry expands into wider printing presses and with more diverse products on offer, the finishing machine or slitter rewinder should as well.

The Solitaire series was designed with this industry trend in mind, along with the normal flexibility from any ASHE machine to ensure it covers a wide range of products and use cases. The narrow web duplex slitter rewinder is able to handle all filmic substrates along with papers, laminates, aluminium foils and pressure-sensitive products.

The technology has been taken from the Sapphire S2 series of slitting machines, and features our vacuum roller for tension isolation, and fully automatic diameter control. The Solitaire slitter rewinder also boasts features to minimise downtime, such as laser core indication and semi / fully automatic knife positioning systems.

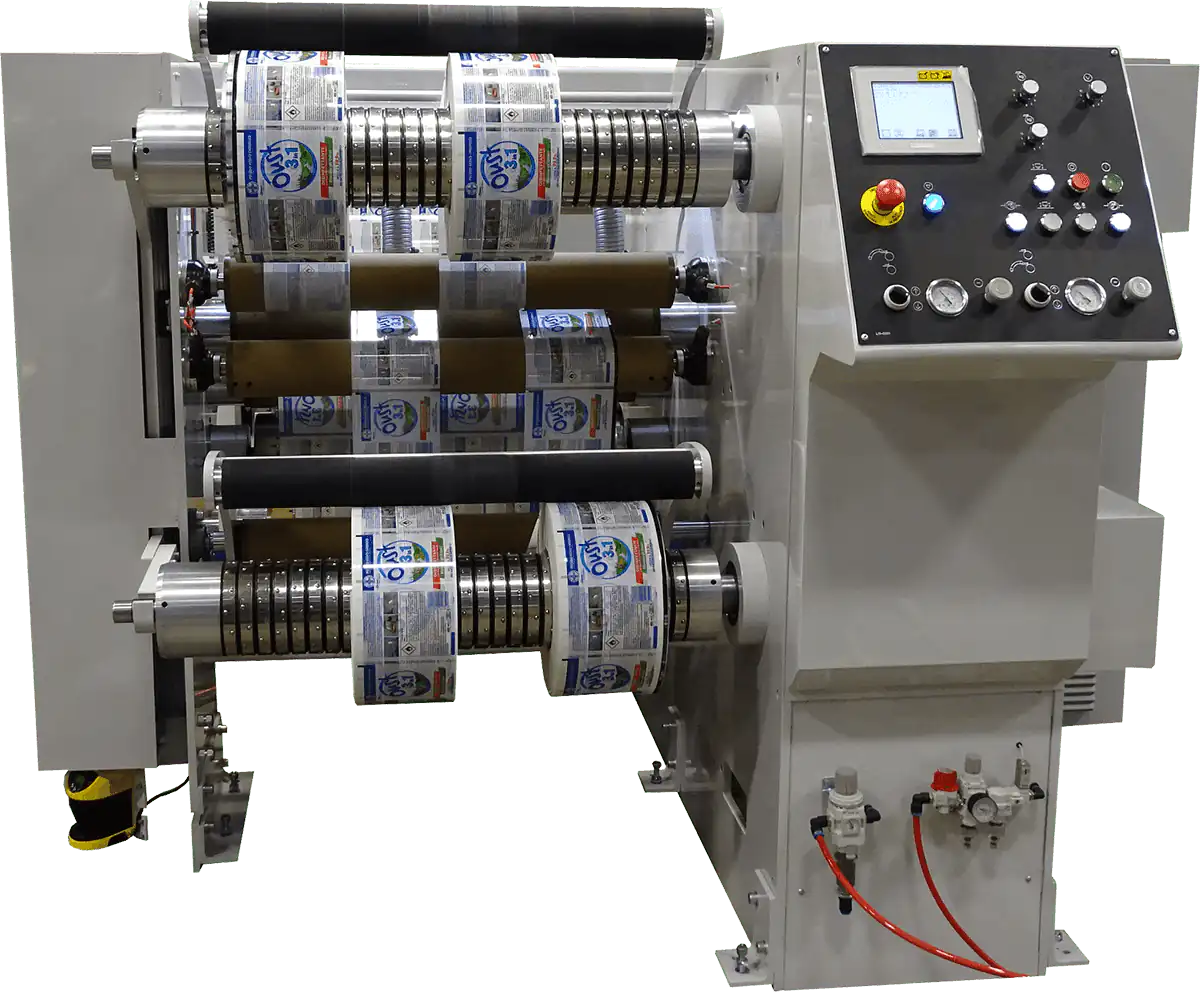

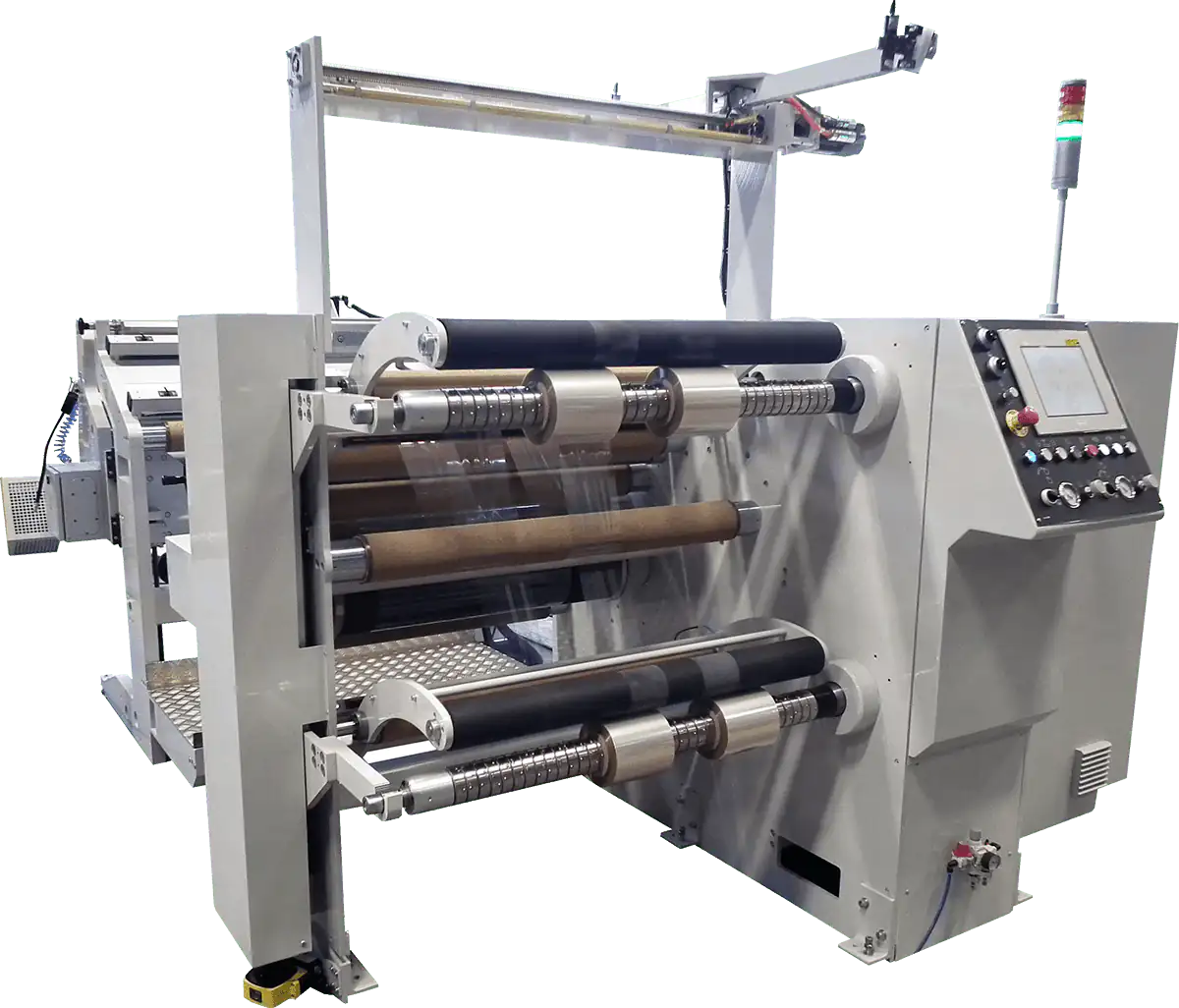

The Solitaire slitter rewinder is also available with a duplex turret rewind to minimise changeover times.

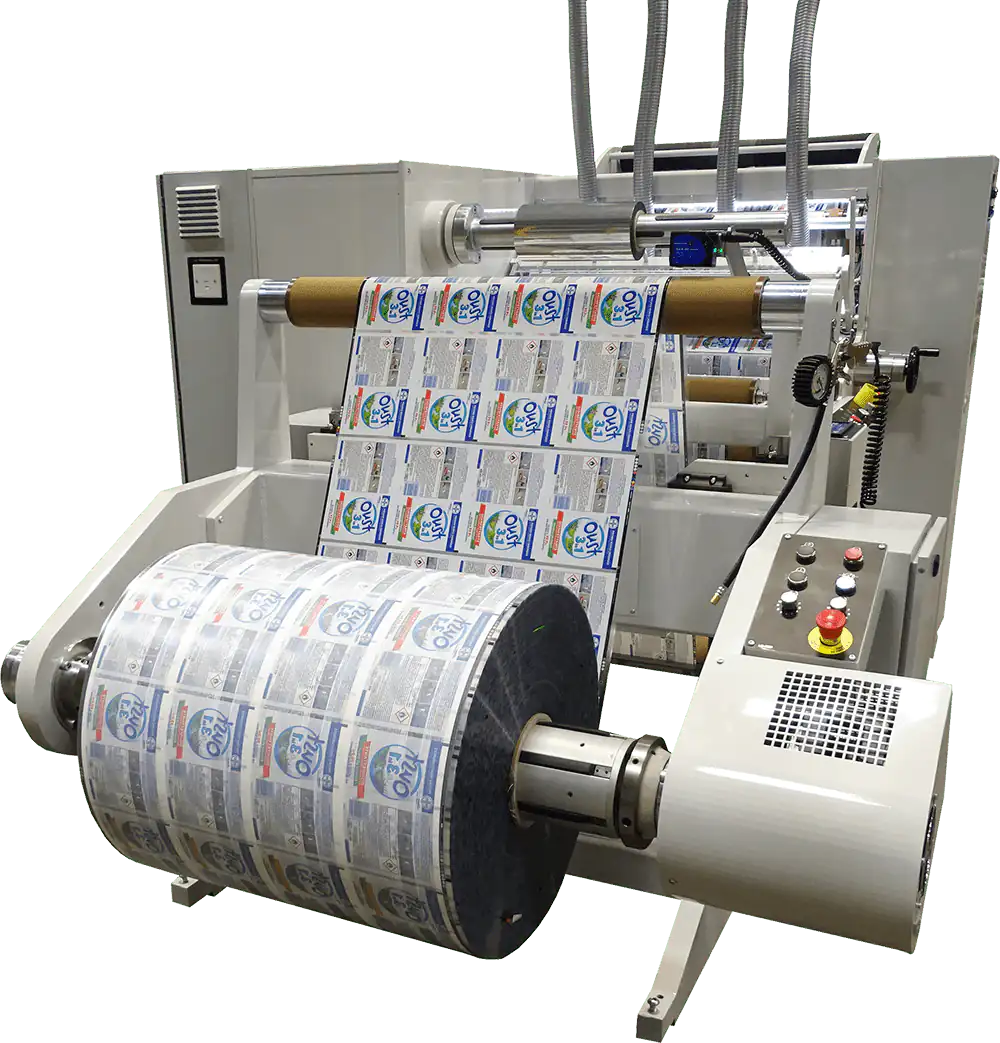

  • Separated unwind or integrated depending upon unwind roll diameters
  • All electric unwind eliminating the need for hydraulics
  • Splicing table on unwind for ease of roll joining
  • Full web guiding with ASHE own edge / line guider for all materials
  • Vacuum roller for tension isolation
  • All forms of slitting can be accommodated on the machine
  • Options for ease of knife setting such as laser indication or automatic knife positioning
  • ASHE differential (friction) winding shafts which require NO LUBRICATION
  • Open or closed loop systems for rewind tension control
  • Intuitive HMI with memory storage
  • Full remote diagnostics with data transfer possibilities
Material width 400mm (16″) to 1000mm (40″)
Parent roll diameter Up to 1200mm (47″)
Maximum rewinding diameter 600mm (24″) or 800mm (32″)
Slitting methods All slitting metods available
Slitting widths Minimum 25mm (1″)
Machine speed 500m/min (1640ft/min)
