Tecnología innovadora para la mejor calidad de rollo disponible

The design of the Jade primary film slitter rewinder series is to mejorar la calidad del bobinado of all films a altas velocidades and to add greater flexibility to machine setup.

Logotipo de Ashe
Más información

Consulta

If you are interested in finding out more about our products, please fill out the following form and a member of our team will be in touch with you soon.

Cómo funciona

JadeCortadora rebobinadora de película primaria

The design of the Jade primary slitter rewinder is to improve the winding quality of all films at high speeds and to add greater flexibility to machine setup. The rewind beams move away from the contact roller in a linear fashion as the rewind diameters increase, which gives perfect results for rewind roll finished tension and roll profile.

The film slitter rewinder machine is a total electric operation, which means that no hydraulics are used on the machine for both the unwind and also the unloading of finished slit rolls.

The film slitter rewinder machine’s design is based on our proven technology of a linear winding system and single contact (lay-on) roller per rewind beam.

This eliminates the need to change lay-on roller positions when changing slit patterns. As the contact roller is also driven, the machine is able to offer different winding configurations to give any product perfect finished roll profiles.

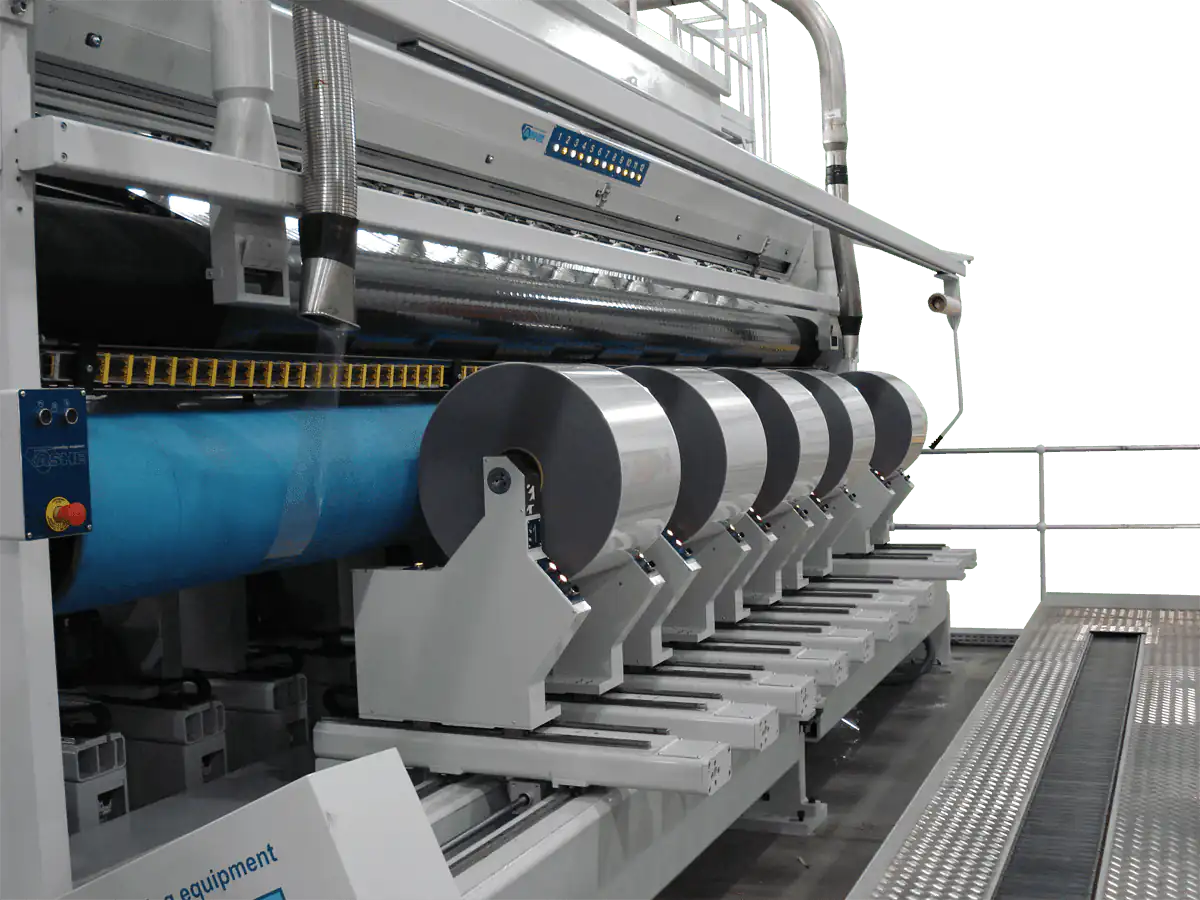

Automation is also available on the machine, such as automatic knife positioning systems and automatic positioning of the rewind stations, as well as a range of unloading systems.

  • Velocidades máximas de funcionamiento de hasta 1200m/min (3940ft/min)
  • All electric operation, making the machine a hygienic choice
  • State-of-the-art AC vector drives, which can be mounted locally on the machine
  • Movimiento lineal de los haces de rebobinado para obtener un perfil de rodillo de corte perfecto
  • Downtime minimised as no changing of contact/lay-on roller positions required
  • Driven contact roller system giving the ability for centre/centre surface wind
  • Gama de automatización que puede ofrecerse
  • Centre and centre surface winding possibilities
  • Servo-driven rewind motors
Anchura de las máquinas 4000mm (157″) to 8700m (343″)
Diámetro de desenrollado 1000mm (40″) to 2000m (80″)
Diámetro de rebobinado Hasta 1200mm (48")
Tamaños de núcleo de rebobinado from 76mm (3″)

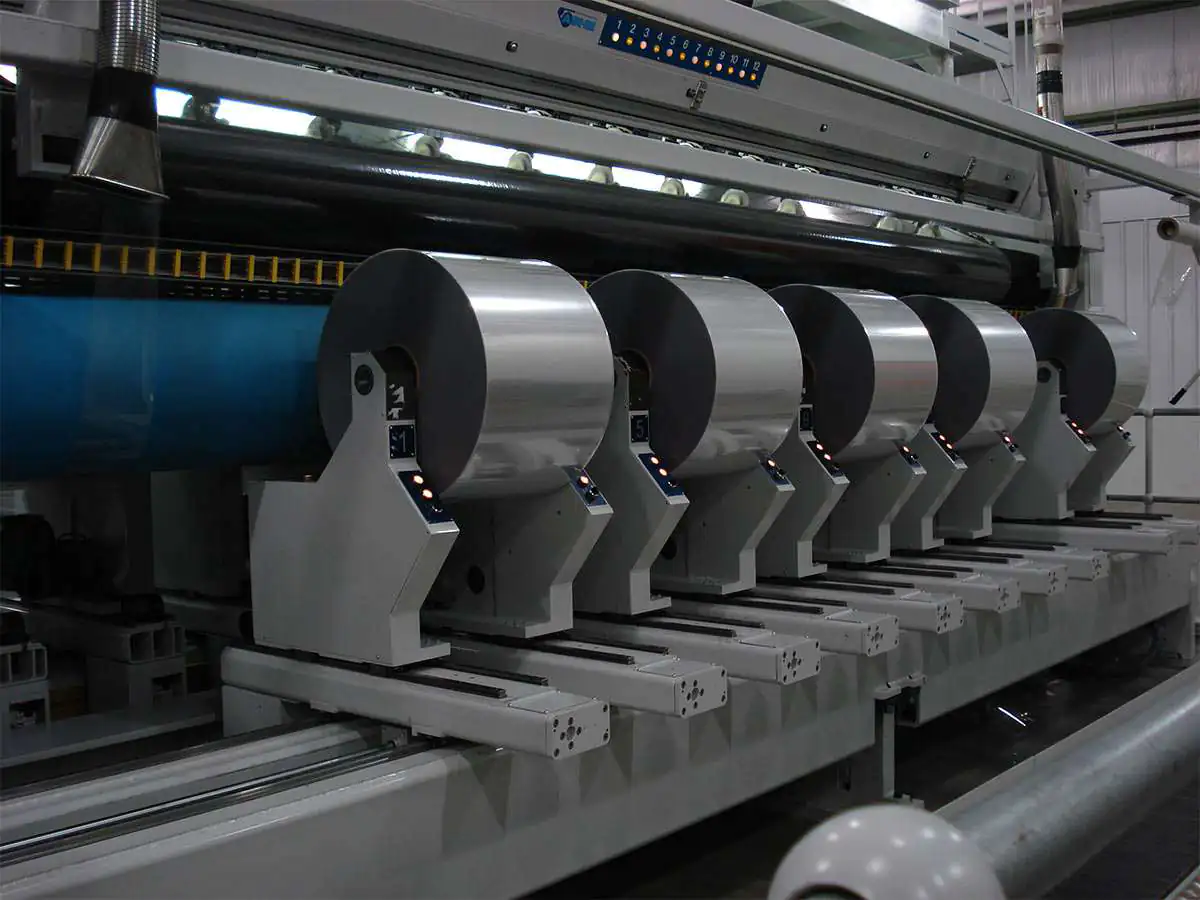

Anchura mínima de la hendidura 250mm (10″)
  • Varias configuraciones de corte disponibles
  • Capaz de manipular todos los sustratos fílmicos
