Convertidor de etiquetas Opal

Un convertidor de etiquetas diseñado para satisfacer las necesidades de la industria de las etiquetas adhesivas

amplia gama of converting solutions is available for the die-cutting of blank or pre-printed labels.

Nuestro sistema de reinscripción servocontrolado es capaz de lograr niveles de tolerancia de +/- 0,1mm en una, dos o tres estaciones.

Logotipo de Ashe
Más información

Consulta

If you are interested in finding out more about our products, please fill out the following form and a member of our team will be in touch with you soon.

Cómo funciona

OpalConvertidores de etiquetas de banda estrecha y líneas de conversión

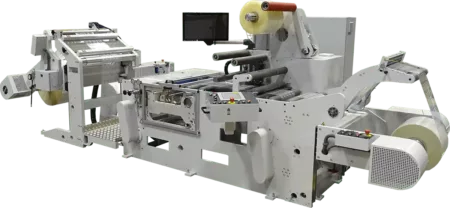

A popular product in our label converter and label converting line category, the Opal series converter uses a full array of direct AC Servo motor control. The Opal Series label converter offers the ability to produce high-speed full rotary die cut supported products, both paper and film, in the form of traditional vertical die stations as well as horizontal stations.

The die station design is modular and can be engineered to suit standard sizes of ASHE’s die tools, existing die tools currently running in existing equipment, or both (with the right tooling included).

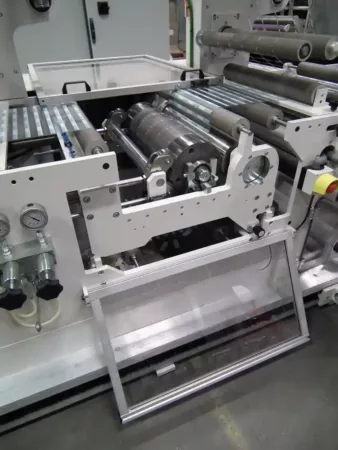

El aislamiento de la tensión se consigue mediante servoaccionamientos directos de entrada y salida antes y después de las estaciones de troquelado. Esto permite un troquelado preciso y algunas de las mejores tolerancias disponibles actualmente en el mercado. La Opal permite el troquelado de alta velocidad preimpreso con la opción adicional de control de registro.

Both vertical and horizontal type stations can accommodate precise ‘adjustable anvils’ to give better die-cutting adjustments. All makes of anvil systems are available to be engineered into every station as required. The die stations are ASHE-patented and designed to allow engineering changes to suit final requirements.

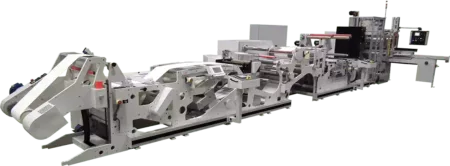

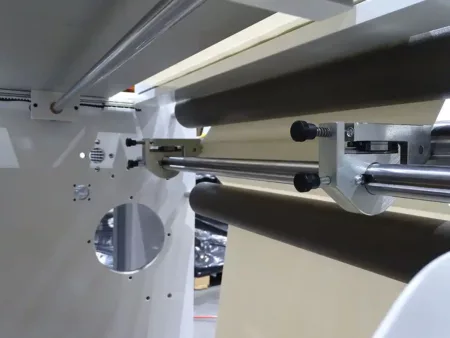

También se dispone de otras instalaciones de transformación, como unidades de engatillado/remachado, estaciones de laminado completo, estaciones de flexografía de recubrimiento por puntos y por inundación, dispositivos de hendido posterior e impresión por chorro de tinta en línea completa.

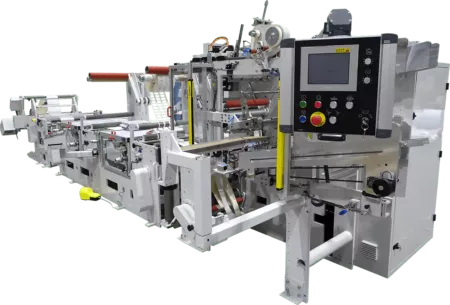

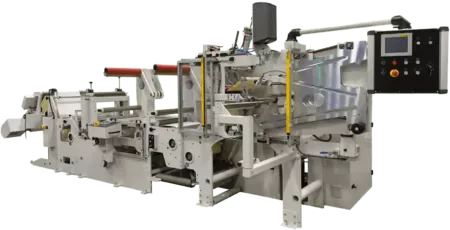

As standard, the ASHE-patented fully automated ‘glueless’ turret system can be added to lines, allowing fully automated converting lines.

De cerca

Convertidores de etiquetas y líneas de conversión Narrow-WebCaracterísticas principales

  • All converting requirements can be engineered into a modular design

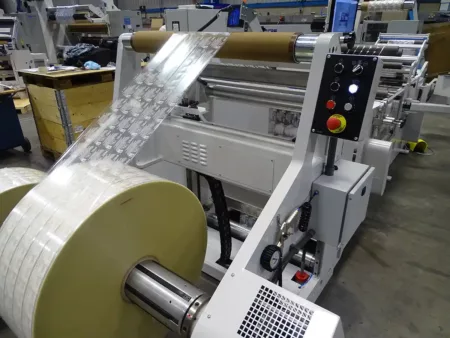

  • Varias formas de diseños de desenrollado

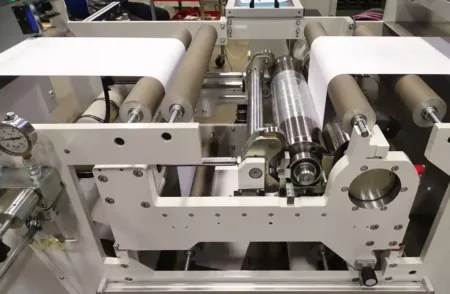

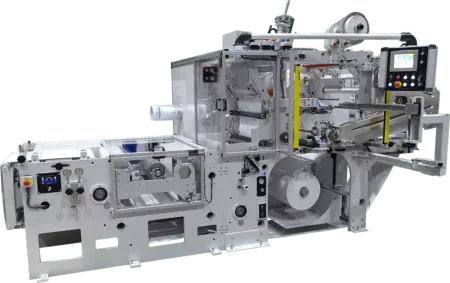

  • Diseños de estaciones de troquelado verticales y horizontales para la aplicación y fácil carga/descarga de herramientas
  • Opciones de eliminación de bordes

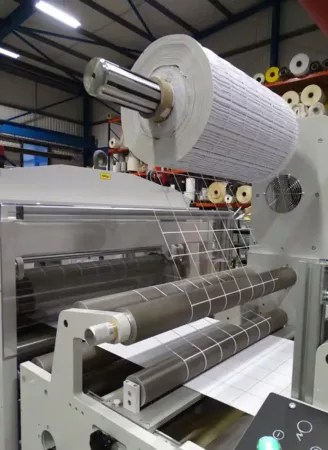

  • Opciones avanzadas de despojo de la matriz con asistencia especial de despojo y rebobinado servo
  • Print options available for both flexography and digital ink jet
  • Estaciones de laminación
  • Automated Knife Slitting System (AKSS)

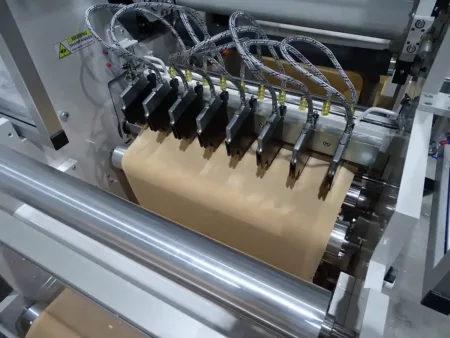

  • Todas las formas de cuchillas de corte disponibles (rotativas, de aplastamiento, de cuchilla)
  • Ajustes de perfil de tensión muy precisos en todos los convertidores
  • Varias formas de sistemas de guiado de la banda para diferentes sustratos
  • All machines are modular to allow for further equipment to be added after initial installation
  • Pantalla táctil HMI en color

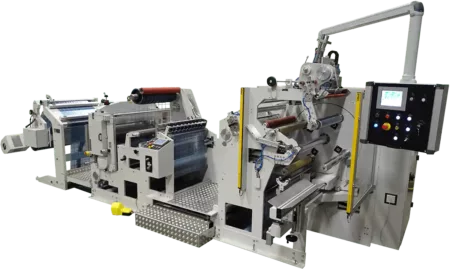

  • Sistemas de detección e inspección de etiquetas faltantes disponibles
  • Four-spindle glueless turret rewind or simplex/duplex rewinds
  • All sizes of rewind core ID, as well as coreless rewinding
  • Full inter-label cutting feature to allow for an exact batch of labels on every roll
  • Fully automated core loading options available
Ancho del material340mm (13″)
440mm (17″)
540mm (21″)
600mm(24″)
Diámetro máximo de rebobinado400mm (16″)
600mm (24″)
Velocidad de la máquina250m/min (820ft/min)
Materiales a ejecutarTodos los sustratos (principalmente soportados)
OperaciónServo AC directo
