Sapphire S2
Die einzige Wahl für Bedienungskomfort, Wiederholbarkeit und minimale Ausfallzeiten. Die Schneidemaschine Sapphire S2 ist bekannt für seine Vielseitigkeit in handling many different products without any changes to the machine operation.

Anfrage
If you are interested in finding out more about our products, please fill out the following form and a member of our team will be in touch with you soon.
Sapphire S2Breitbahn-Duplex-Rollenschneider-Aufwickler
Our flagship duplex slitter rewinder is designed to process all flexible material substrates at high speeds with ultimate precision. The concept of this slitting machine is to offer a simple manual solution through to a fully automated slitter rewinder that has minimal operator intervention.

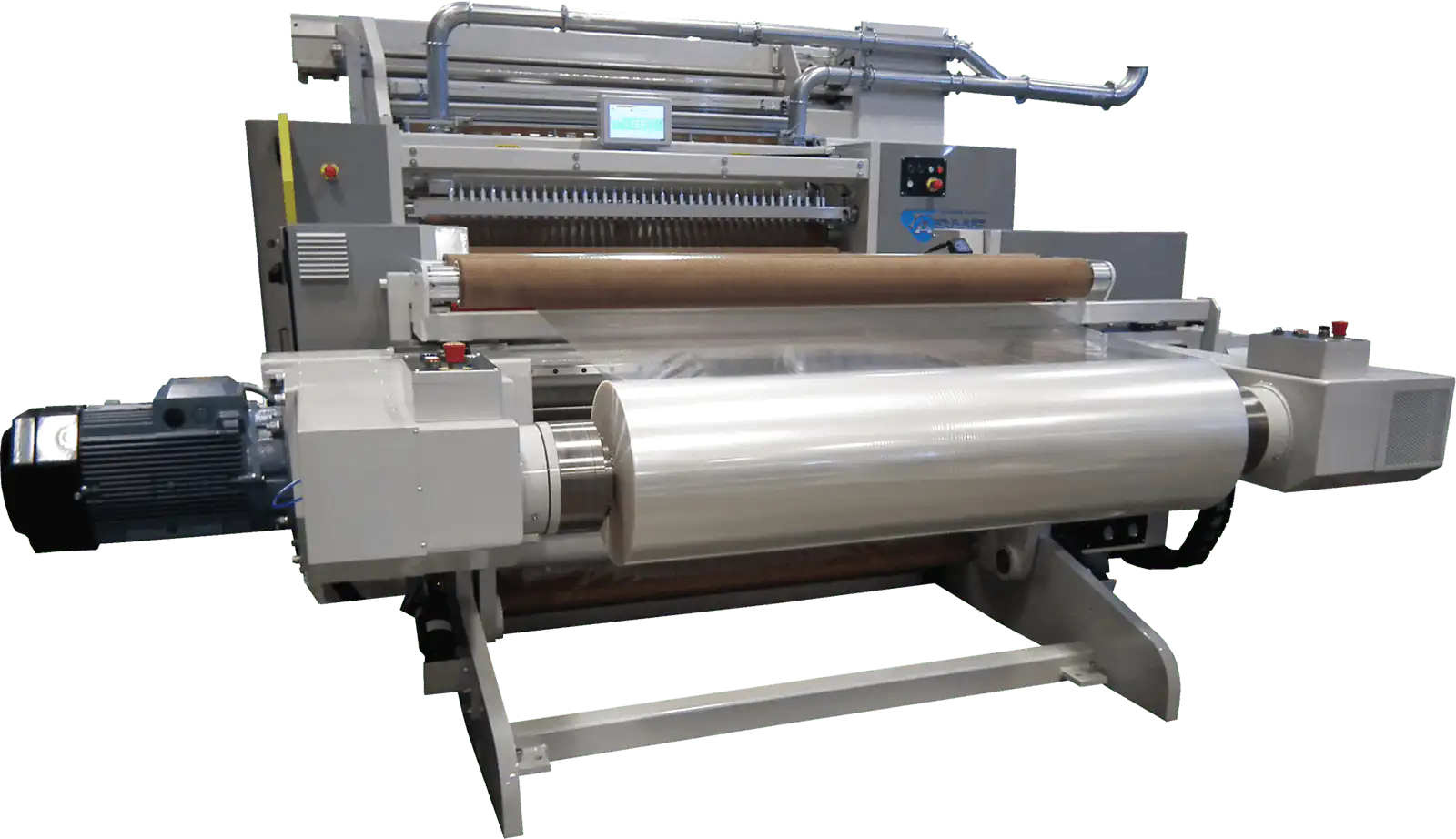

Using the latest control technology makes the machine extremely easy to operate and gives it the flexibility many converters demand. The machine is available in various unwind configurations to suit most applications and products.

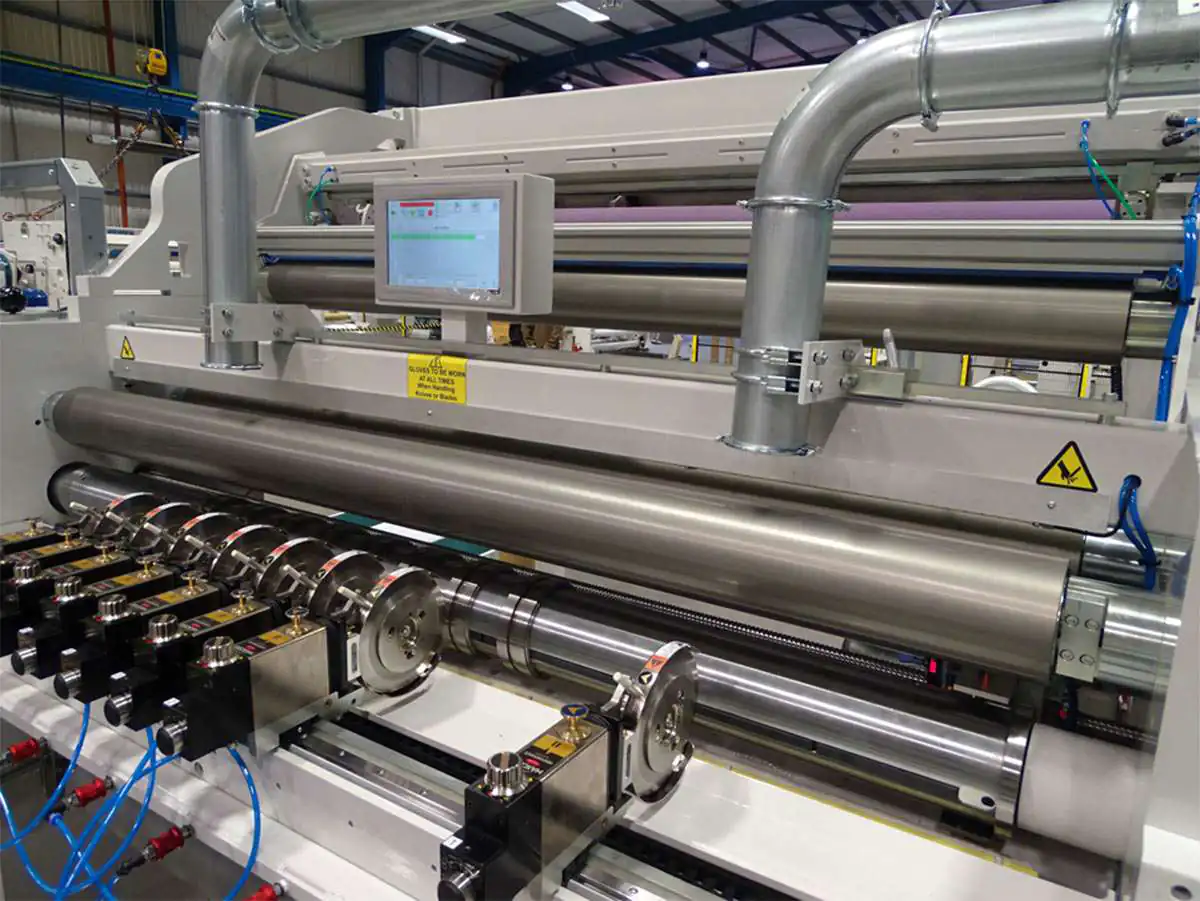

All forms of slitting can be accommodated on the Sapphire s2, and there is a range of automation solutions on the slitting station for ease and speed of knife setup. This automation can also continue to the rewind section, where features such as automatic core indication or automatic core positioning can be accommodated.
Diese Schneidemaschine ist die sauberste Lösung für flexible Verpackung and for medical products, as there are no hydraulics on the machine. All unwind movements are powered electrically. Our vacuum roller technology is also on the machine to give perfect tension isolation between the unwind and rewind, which requires no operator intervention or maintenance.

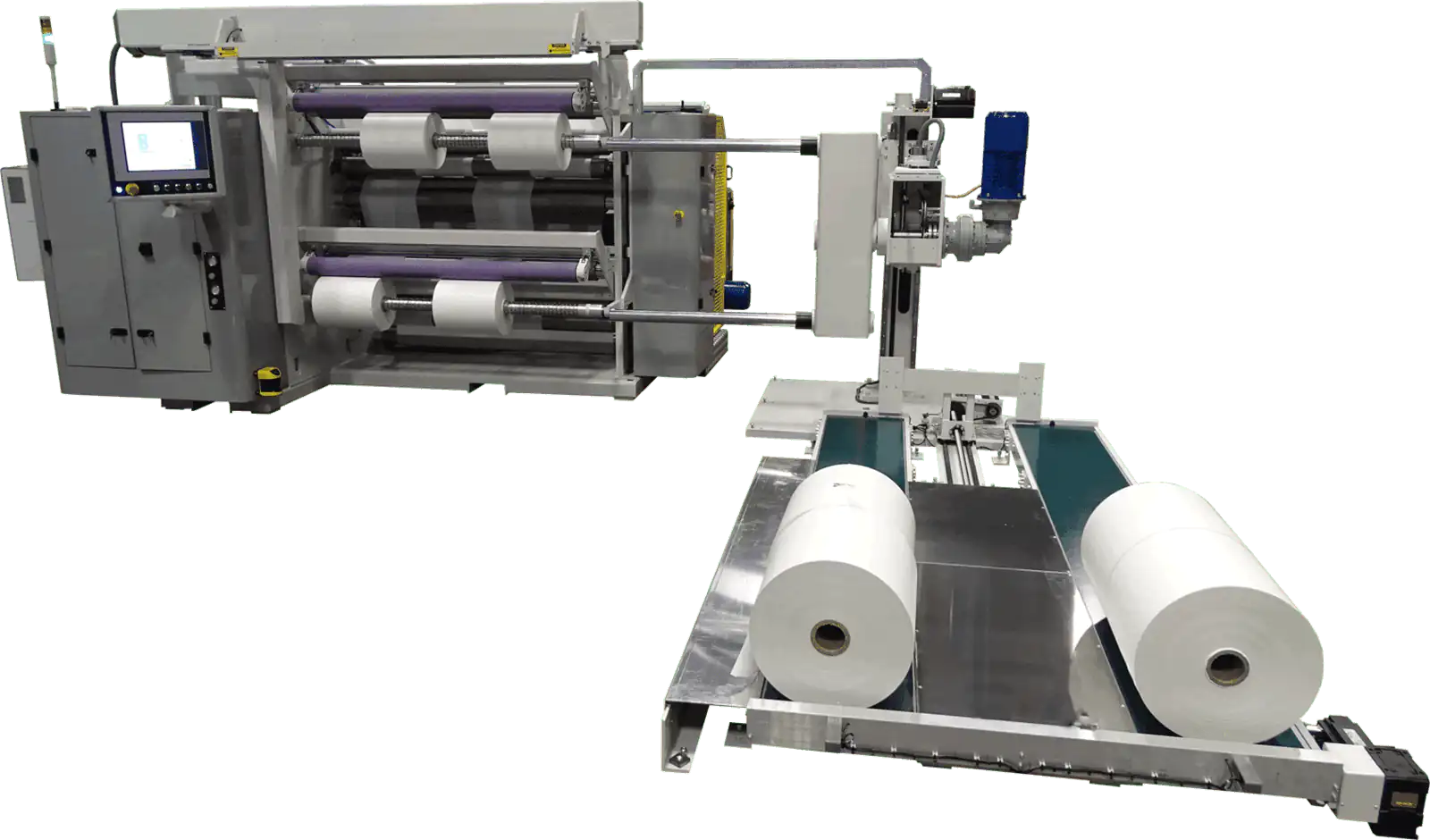

Roll handling solutions from the rewind can also be offered within the machine package, which can range from simple fixed pedestals to full robotics with wrapping and labelling.
- Merkmale
- Spezifikationen
- Galerie
- Video
- Broschüre
- Getrennte wellenlose Abrollung mit unabhängiger Bewegung der einzelnen Arme

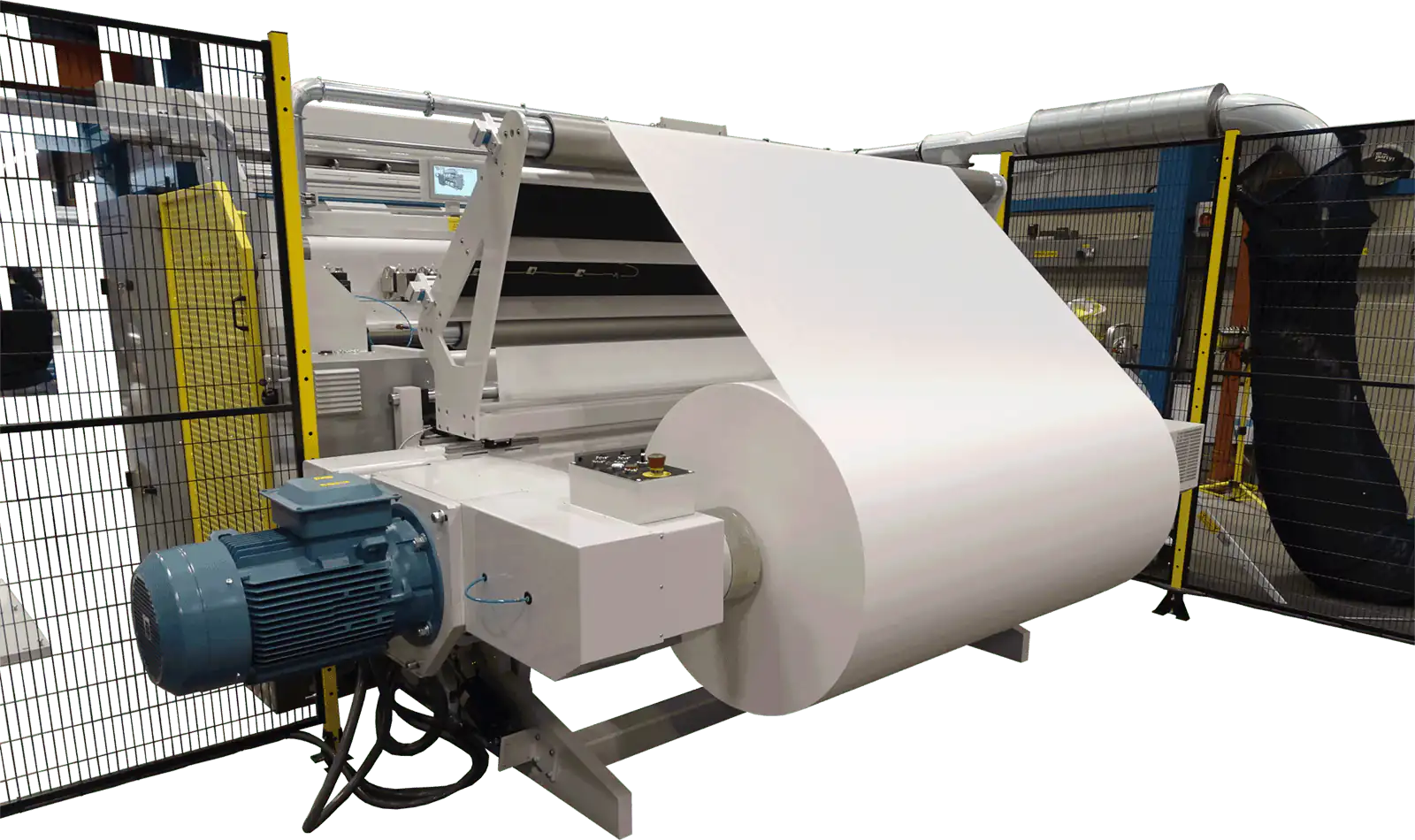

- Electric roll lifting system, which uses no hydraulics
- Braked, unwound, or driven with a dancer roller
- Spleißtisch auf der Abrollung für Rollenverbindungen
- Full web guiding with ASHE’s own edge/line guider for all materials
- Vakuumrolle zur Spannungsisolierung
- Alle Arten von Schlitzen können auf der Maschine untergebracht werden
- Full automation can be offered with automatic knife/blade positioning available for all forms of slitting
- Laser-aided positioning or digital readout systems available for slitting
- ASHE differential (friction) winding shafts, which require NO LUBRICATION
- Systeme mit offenem oder geschlossenem Regelkreis für die Steuerung der Aufwickelspannung
- Motor und Antrieb auf jeder Aufwickelwelle als Standard
- Driven lay-on (contact) roller system with different widths available
- Intuitives HMI mit Speichermöglichkeit
- Volle Ferndiagnose mit Datenübertragungsmöglichkeiten
Materialbreite | 1000mm (40″) to 2000mm (80″) |
Durchmesser der Mutterrolle | Up to 1800mm (40″) |
Maximaler Aufwickeldurchmesser | 600mm (24″) 800mm (32″) 1000mm (40″) je nach Anwendung |
Schlitzmethoden | Alle Schneideverfahren verfügbar |
Schnittbreiten | Minimum 25mm (1″) |
Geschwindigkeit der Maschine | 800m/min (2624ft/min) |

Laden Sie diese Broschüre als PDF herunter:
ASHE ProduktpaletteS2 Rollenschneider AufwicklerHauptmerkmale
