Jade Film Slitter Rewinder

Superior winding quality even at high speed

The Jade series is designed to improve the winding quality of all films at high speeds, adding greater flexibility on machine setup, making it one of the best secondary slitter rewinders on the market in the UK.

Ashe Logo
Find out more

Enquiry

If you are interested in finding out more about the [page_title] , please fill out the following form and a member of our team will be in touch with you soon.

How it works

JadeSecondary Film Slitter Rewinder

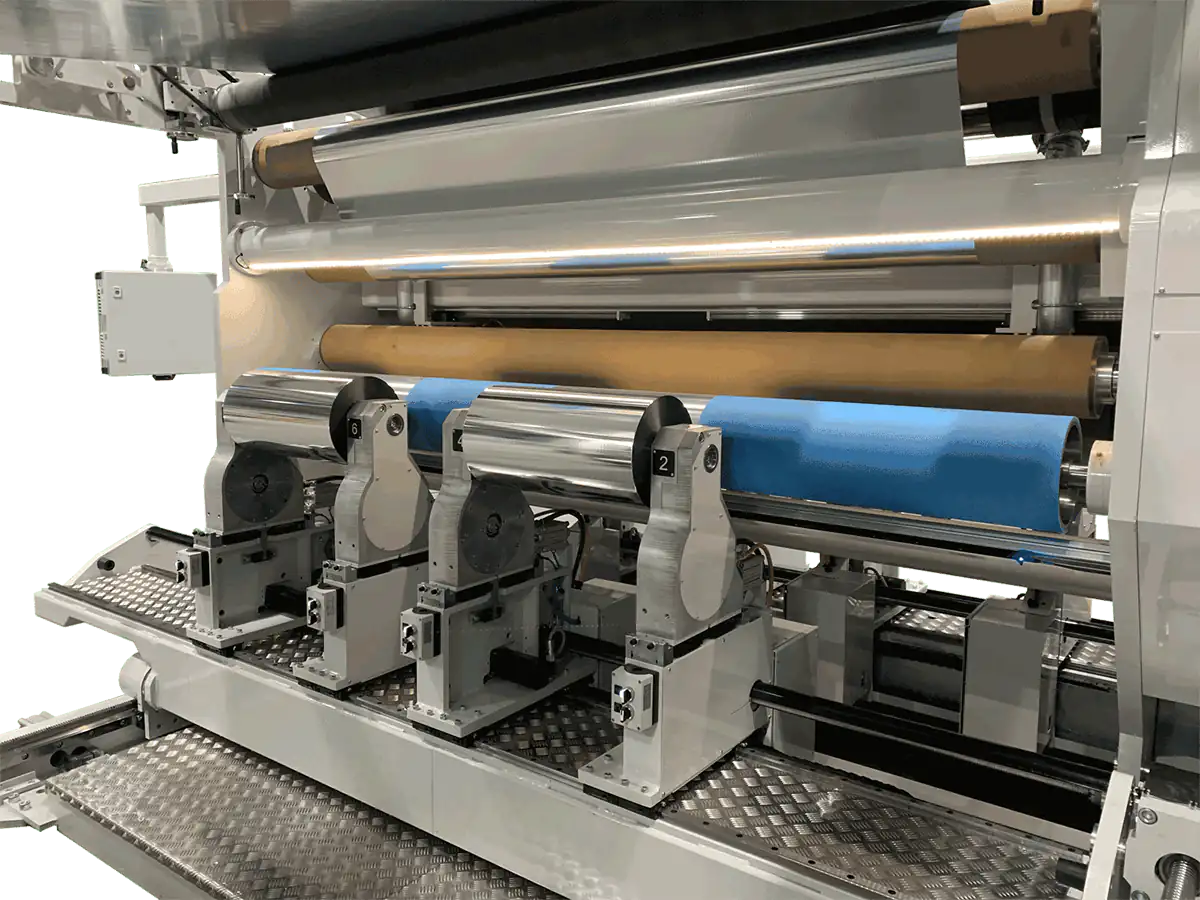

The updated concept of our Jade secondary model slitter rewinder with individual rewinding stations has been developed for film manufacturers and converters who are looking for perfect finished roll quality, in minimal time.

The machine’s design is with our proven technology of a linear winding system and singe contact (layon) roller per rewind beam. This eliminates the need to change layon roller positions when changing slit patterns. As the contact roller is also driven the machine is able to offer different winding configurations to give any product perfect finished roll profiles, making it the ideal secondary slitter rewinder for a range of uses.

The machine has been designed with flexibility in mind, therefore the design can be suited for all film manufacturers, whether BOPP, CPP, BOPET, PA, metallised or coated films. The machine can also easily be configured for converters of papers and films, laminates or any other speciality product that needs converting.

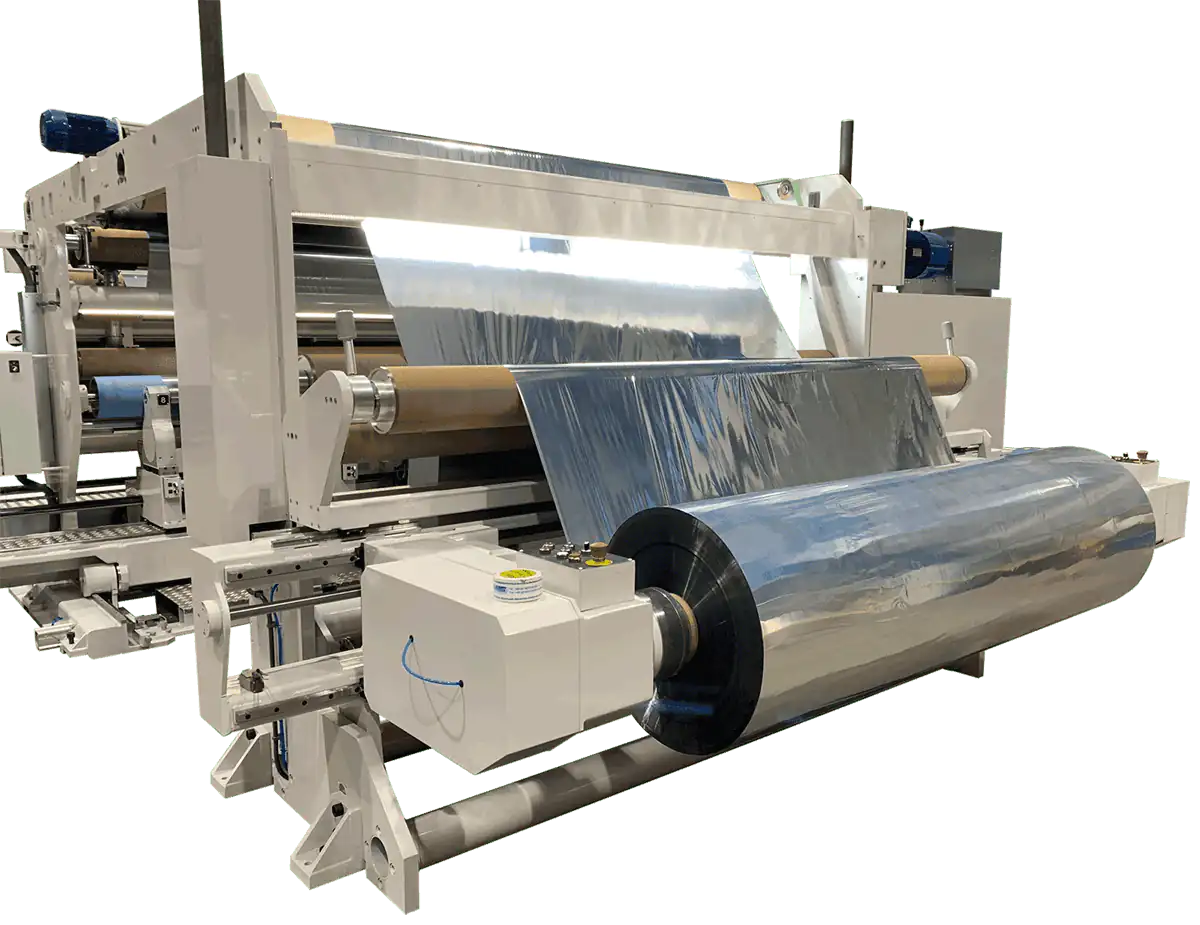

Different unwinding systems are available on the machine along with all the different slitting configurations to slit and rewind most substrates. Automation is available with simplified automatic knife and rewind arm positioning systems which require minimal maintenance.

  • All electric operation meaning no hydraulics are used at all on the machine
  • Easy to install and maintain
  • Different slitting systems available to suit most applications
  • Vacuum roller available for perfect tension isolation
  • Semi automatic knife or rewind arm positioning available

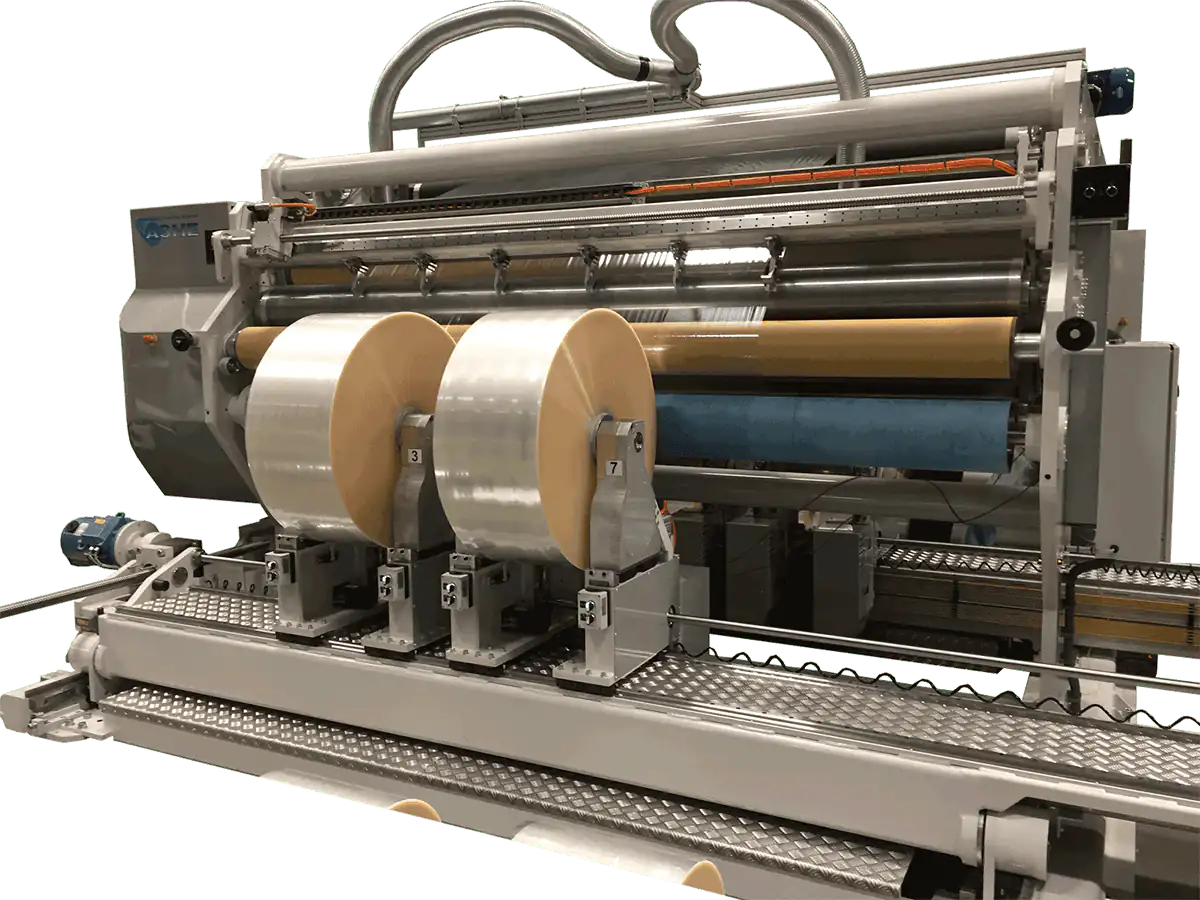

  • Full automation on knife and rewind arm setup also available
  • Linear winding system away from contact (layon) roller
  • Unloading of the rolls onto simple trolley to full conveying systems available
  • Full remote diagnostics
  • Servo driven rewind motors

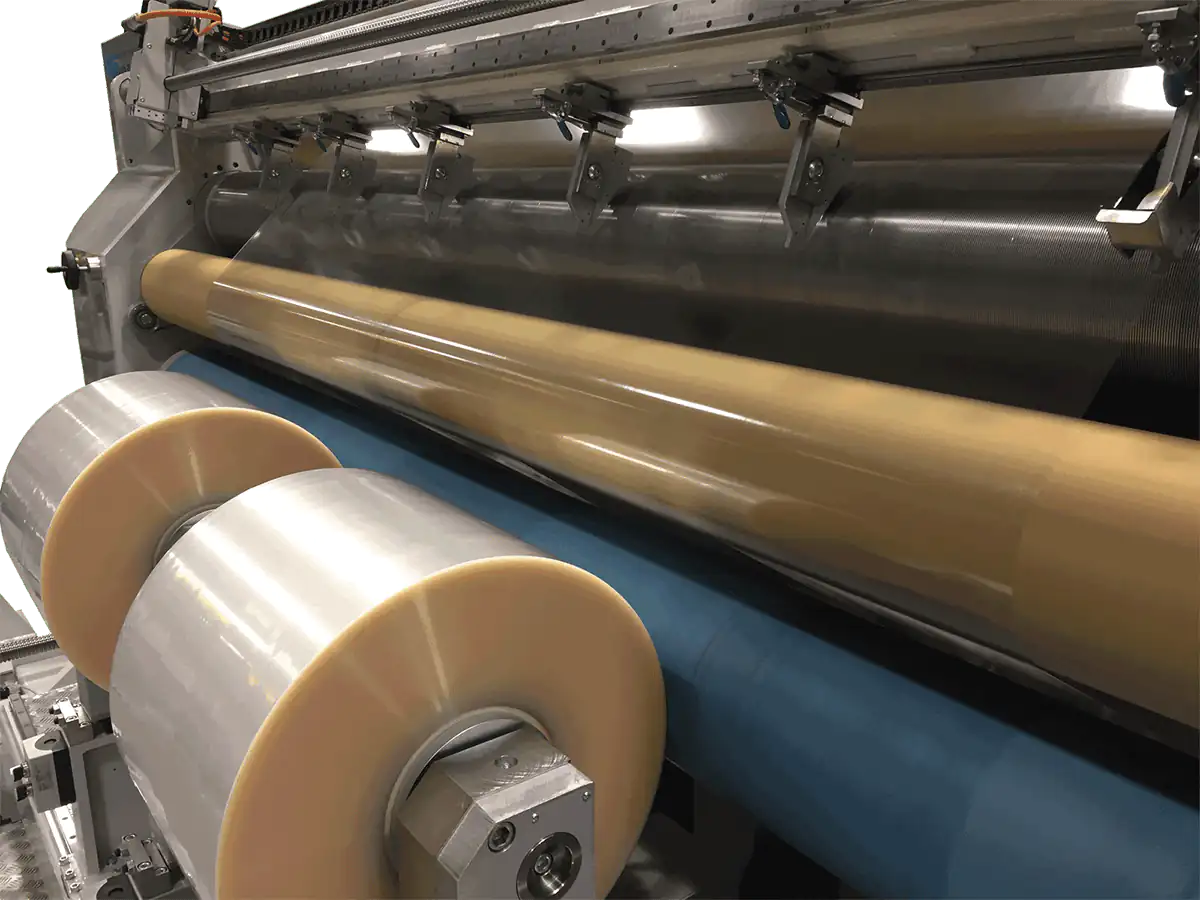

  • Centre & centre surface winding possibilities
Material width Maximum 4000mm (158″)
Parent roll diameter (unwind) Maximum 2500mm (98″)
Finished roll diameter (rewind) Maximum 1200mm (48″)
Slitting methods Razor Rotary Shear Burst
Minimum Slitting widths 250mm (10″)
Maximum finished roll weight 3000kgs (1363lbs)
Machine speed Up to 1200m/min (3940ft/min)
