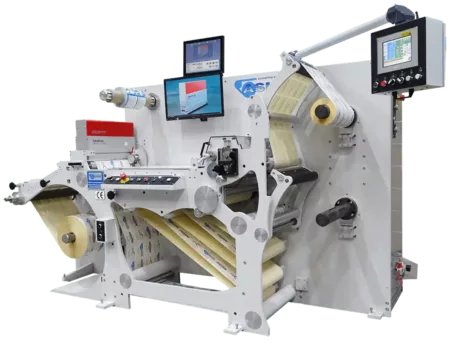

Vollständige Integration mit 100%-Inspektionssystemen mit erweiterten Webpfaden
Narrow-web

Opal ISR

Die Rollenschneidmaschine für die Etikettenkontrolle mit präziser Qualitätskontrolle zu einem günstigen Preis

ASHE’s Opal ISR narrow-web label inspection slitter rewinder is the best choice for inspection, speed, and highest production. A machine that is packed with features to give total flexibility.

Ashe Logo
Mehr erfahren

Anfrage

If you are interested in finding out more about our products, please fill out the following form and a member of our team will be in touch with you soon.

Wie es funktioniert

Opal ISRSchmalbahn-Etiketteninspektion Rollenschneider Aufwickler

The Opal ISR label inspection slitter rewinder gives users exceptional versatility and flexibility.

Aufgrund des modularen Aufbaus der Maschine sind verschiedene Konfigurationen möglich, die alle die neueste Servo- und Bewegungssteuerung nutzen. Die Maschine bietet außerdem kürzere Rüstzeiten mit verschiedenen Optionen, die je nach Bedarf angepasst werden können, sowie eine maximale Laufgeschwindigkeit von 350 m/min.

Full 100% camera inspection systems can be easily accommodated on the label inspection slitter machines. We are able to work with a number of suppliers who can supply their own tailored solutions so we can supply a machine that meets your exact requirements on both inspection and finishing. The machine has different web path configurations, so it can stop any detected fault prior to going through the main drive/slitting station.

  • Hochentwickelte Servo- und Bewegungssteuerung für perfekte Bahnführung und volle Spannungseinstellung
  • Ergonomisches Design für mehr Flexibilität
  • Spleißtische an der Maschine günstig gelegen
  • Full integration of 100% camera inspection systems available
  • Abfallaufwickler können mit Inspektionssystemen kombiniert werden
  • Choice of web paths to suit inspection purposes and final requirements
  • Rapid stop/start for high productivity
  • Easy lock/unlock rewind shafts to run any size of core between 19mm (3/4”) to 152mm (6”)
  • Einstellbares elektronisches Kantenführungssystem für alle Materialien (Papier und Folie)
  • Länge (Meter und Fuß) und Kontrolle der Etikettenanzahl

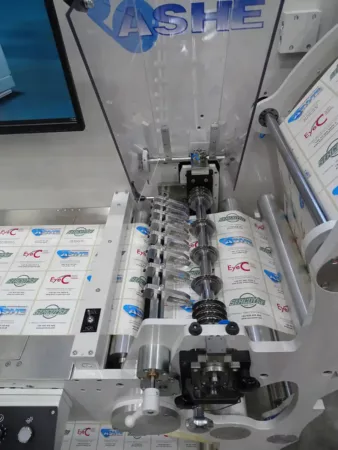

  • Range of slitting systems with rotary shear, razor, and crush slitting all available
  • Automatisches Messerpositionierungssystem an der Maschine verfügbar
  • Simplex or duplex rewinding available with web advance systems/lay-on control
  • Wicklung mit Luftwellen oder Differenzialwicklung möglich

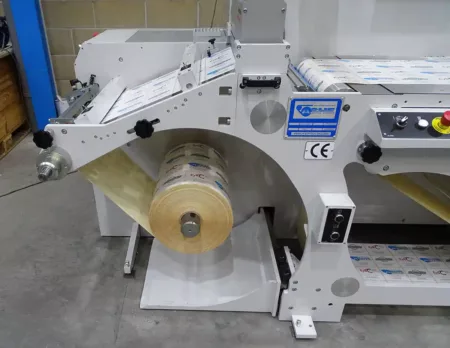

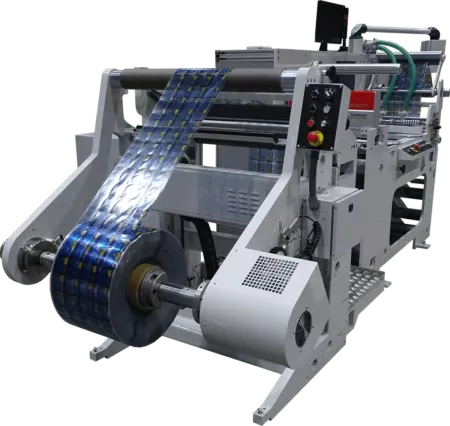

  • Integrierte oder externe Abwicklungen mit elektrischem Rollenhebesystem verfügbar
  • Vollständige Ethernet-VPN-Verbindung für Online-Diagnose über ASHE
Materialbreite 340mm (13″) 440mm (17″) 540mm (21″) 600mm(24″)
Durchmesser der Mutterrolle 800mm (32″) 1000mm (40″) 1270mm (50″)
Maximaler Aufwickeldurchmesser 500mm (20″) 600mm (24″)
Geschwindigkeit der Maschine 350m/min (1150ft/min)
Zu verarbeitende Materialien Papier und Folie PS-Materialien und freitragende Folien
Operation Direkter AC-Servo mit HMI-Touchscreen
ASHE Video-Miniaturansicht
Laden Sie diese Broschüre als PDF herunter:
Endbearbeitungsgeräte für die Etiketten- und Schmalbahnindustrie
Nahaufnahme

Opal ISR Narrow-WebHauptmerkmale
