Opal ISR
The Opal ISR narrow-web label inspection slitter rewinder is the best choice for inspection, speed and highest production. A machine that is packed with features to give total flexibility.
Enquiry
If you are interested in finding out more about the [page_title] , please fill out the following form and a member of our team will be in touch with you soon.
Opal ISRNarrow-Web Label Inspection Slitter Rewinder
The Opal ISR label inspection slitter rewinder gives users exceptional versatility and flexibility.
Due to the modular design of this narrow-web slitter rewinder machine, all of which use the latest servo and motion control. The machine is also able to offer faster setup times, with various options that can be tailored to suit, along with a maximum running speed of 350m/min.
Full 100% camera inspection systems can be easily accommodated on the label inspection slitter machines. We are able to work with a number of suppliers who can supply their own tailored solutions so we can supply a machine that meets your exact requirements, on both inspection and finishing. The machine is available with different webpath configurations so the machine can stop any detected fault prior to going through the main drive/slitting station.
- Advanced servo and motion control to give perfect web handling and full tension adjustment
- Ergonomic design to give greater flexibility
- Splicing tables on the machine conveniently located
- Full integration of 100% camera inspections systems available
- Waste rewinders can be incorporated with inspection systems
- Choice of webpaths to suit inspection purposes and final requirements
- Rapid stop / start for high productivity
- Easy lock / unlock rewind shafts to run any size of core between 19mm (3/4”) to 152mm (6”)
- Adjustable electronic edge guide system for all materials (paper and film)
- Length (metres and feet) and label count control
- Range of slitting systems with rotary shear, razor and crush slitting all available
- Automatic knife positioning system available on the machine
- Simplex or duplex rewinding available with web advance systems/layon control
- Winding with airshafts or differential winding available

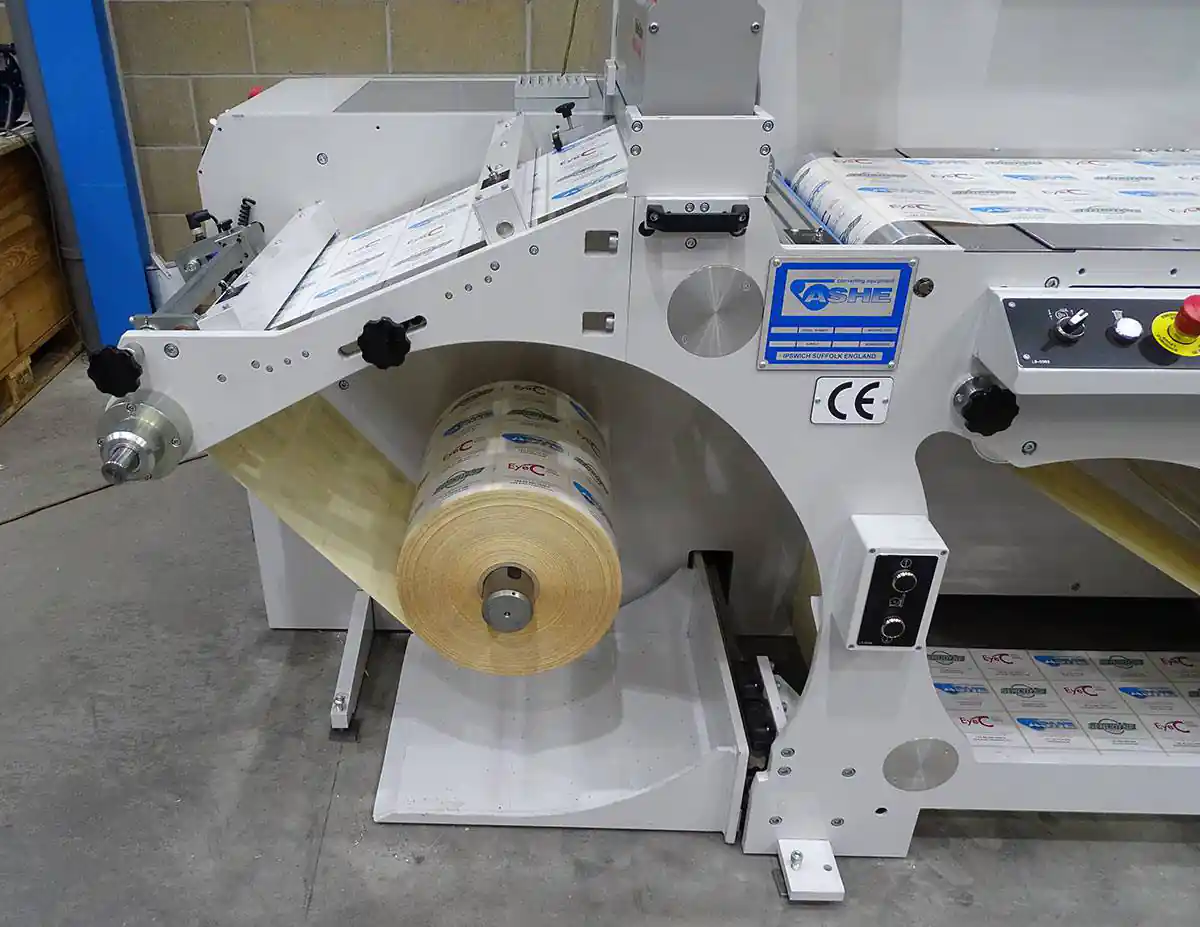

- Integrated or external unwinds with electric roll lifting system available
- Full ethernet VPN link for online diagnostics via ASHE.
| Material width | 340mm (13″) 440mm (17″) 540mm (21″) 600mm(24″) |
| Parent roll diameter | 800mm (32″) 1000mm (40″) 1270mm (50″) |
| Maximum rewinding diameter | 500mm (20″) 600mm (24″) |
| Machine speed | 350m/min (1150ft/min) |
| Materials to be run | Paper and film PS materials and unsupported films |
| Operation | Direct AC Servo with HMI touch screen |
Download this brochure as a PDF:
Finishing equipment for the label and narrow web industriesOpal ISR Narrow-WebKey Features
