Wide-web

Jade

For paper and labelstock producers.

With centre surface capabilities the machine is able to wind with individual rewind stations, a full-width differential rewind shaft, or with an airshaft. The shaftless or shafted rewinding system both utilise a linear tracking system away from the contact roller to give a perfect finished roll, in profile and tension.

Ashe Logo
Find out more

Enquiry

If you are interested in finding out more about the [page_title] , please fill out the following form and a member of our team will be in touch with you soon.

How it works

JadeWide-Web Labelstock/ Paper Slitter Rewinder

Due to its flexibility, our Jade series can also be configured to successfully slit and rewind various grades of pressure-sensitive materials (otherwise known as labelstock) and other forms of papers.

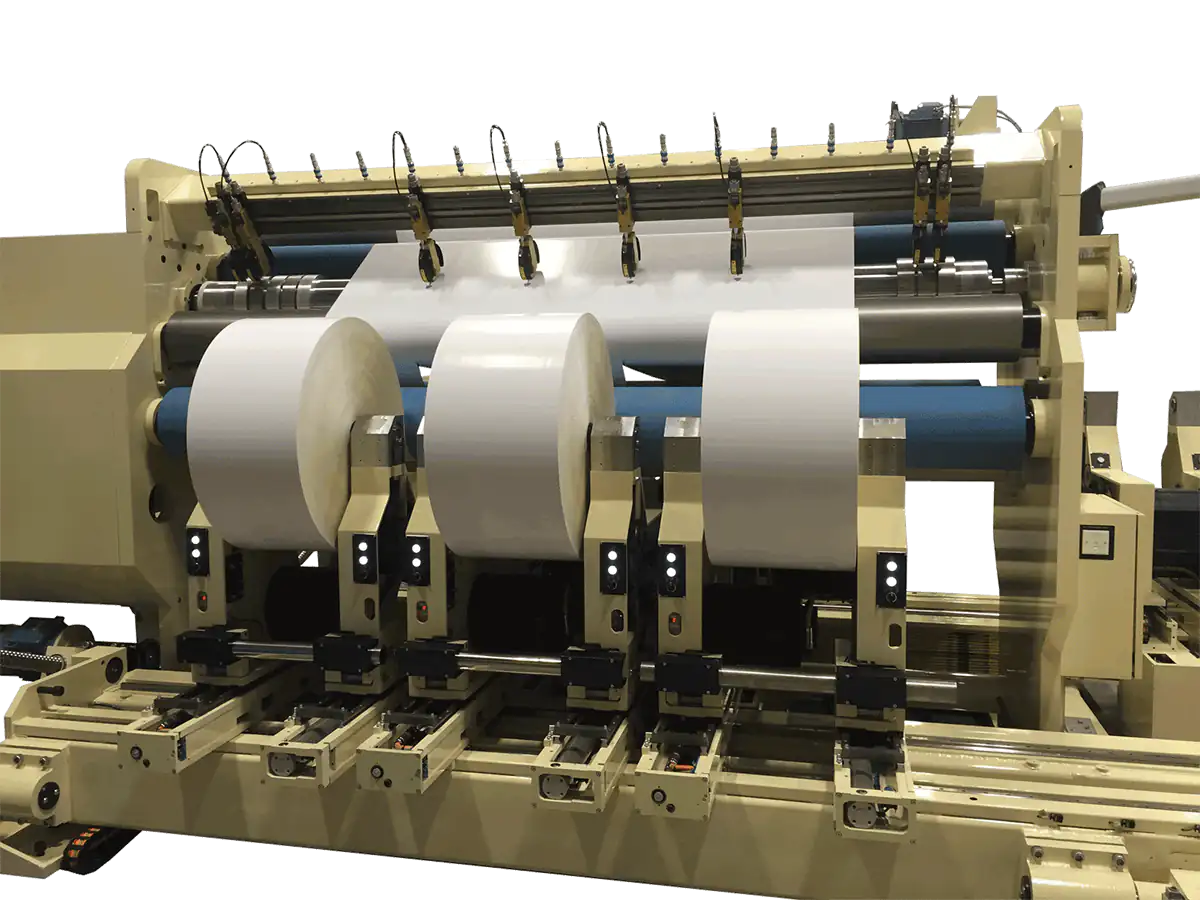

Depending upon finished roll requirements the machine can be configured as a shafted rewind centre surface with differential rewind shafts, or a shaftless rewind (with individual rewind stations) centre surface. Both of these systems utilize our linear tracking system away from the contact roller to give a perfect finished roll, in roll profile and tension.

The control system is unique in that the speed of the driven contact roller can be adjusted to suit specific winding profiles. Our vacuum roller is also utilized to ensure perfect tension isolation from the unwind through to the rewind.

The machine is an all-electric operation and automation is available on the machine to reduce setup times. Finished roll electrically driven unloading trolleys are available on all machines.

  • All electric unwind roll lift and rewind offload – no hydraulics
  • Vacuum roller for tension isolation

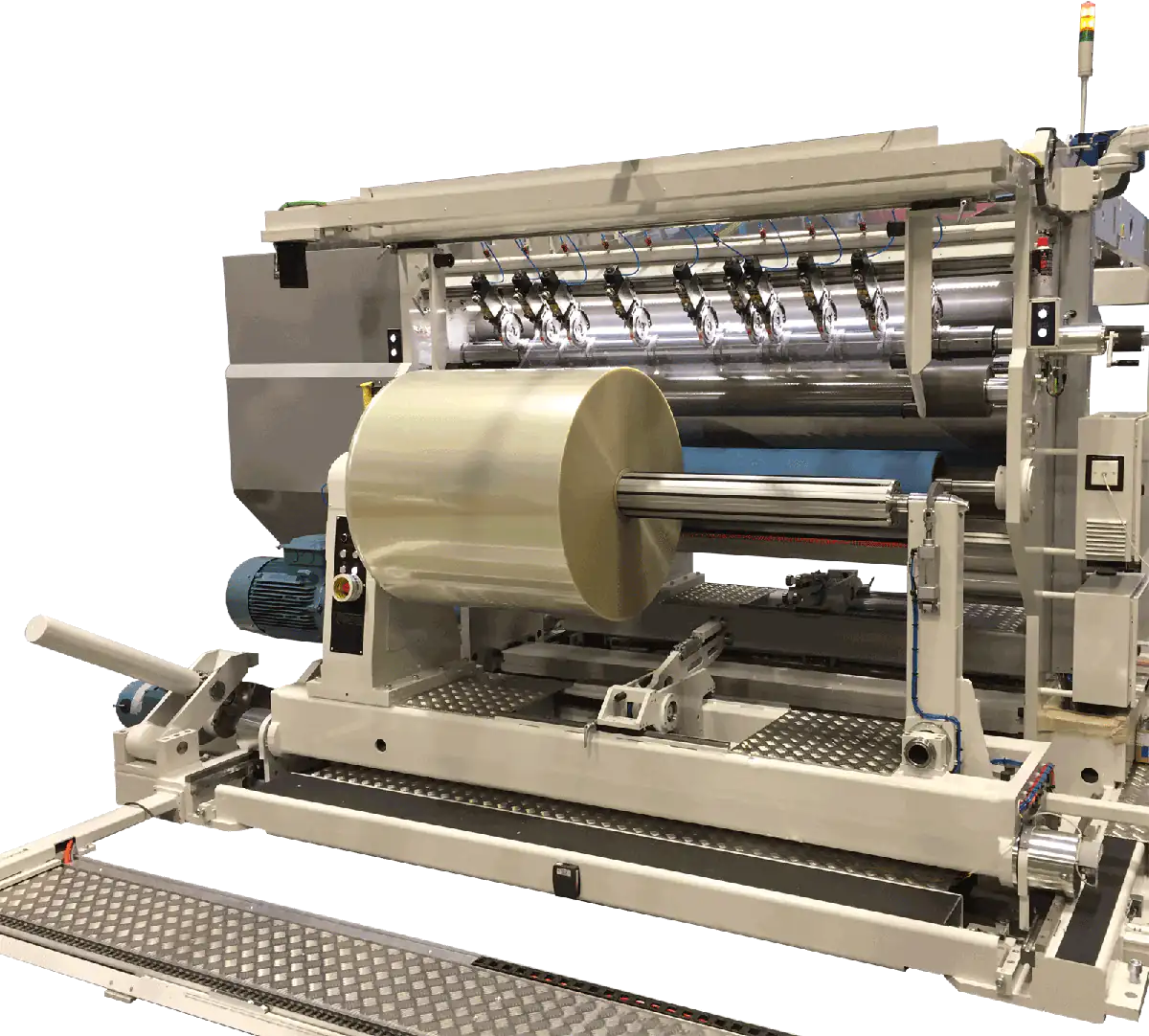

  • Machine available with shafted rewind (differential winding shafts) or with individually driven independent rewind stations
  • Patented shaft support system for shafted version
  • Semi automatic or fully automatic knife positioning systems available for quicker setup times
  • Range of unloading systems available
Material width Maximum 2250mm (89″)
Parent roll diameter (unwind) Maximum 2000mm (80″)
Finished roll diameter (rewind) Maximum 1200mm (48″)
Slitting methods Razor Rotary Shear Crush
Minimum slit widths 50mm (2″)
Machine speed Up to 800m/min (2625 ft/min)
