Duplex Turret Slitter Rewinder
Wide-web

Diamond T

High performance and outstanding value for every budget

The Diamond series of slitter rewinders is also available as a duplex turret slitter rewinder. This advanced slitting machine is built in a one-piece configuration for simplified installation, but can also be supplied with a separate unwind, enabling integration with ancillary equipment such as perforating or punching units.

Ashe Logo
Find out more

Enquiry

If you are interested in finding out more about our products, please fill out the following form and a member of our team will be in touch with you soon.

How it works

Diamond TWide-Web Duplex Turret Slitter Rewinder

The Diamond T duplex turret slitter rewinder has been engineered to deliver maximum efficiency in a compact design, thanks to its turreted rewind section. Built on the same proven principles as the Diamond duplex slitter rewinder, the unwind is fully integrated into the main machine frame. However, it can also be separated when required, allowing easy connection of additional ancillary systems.

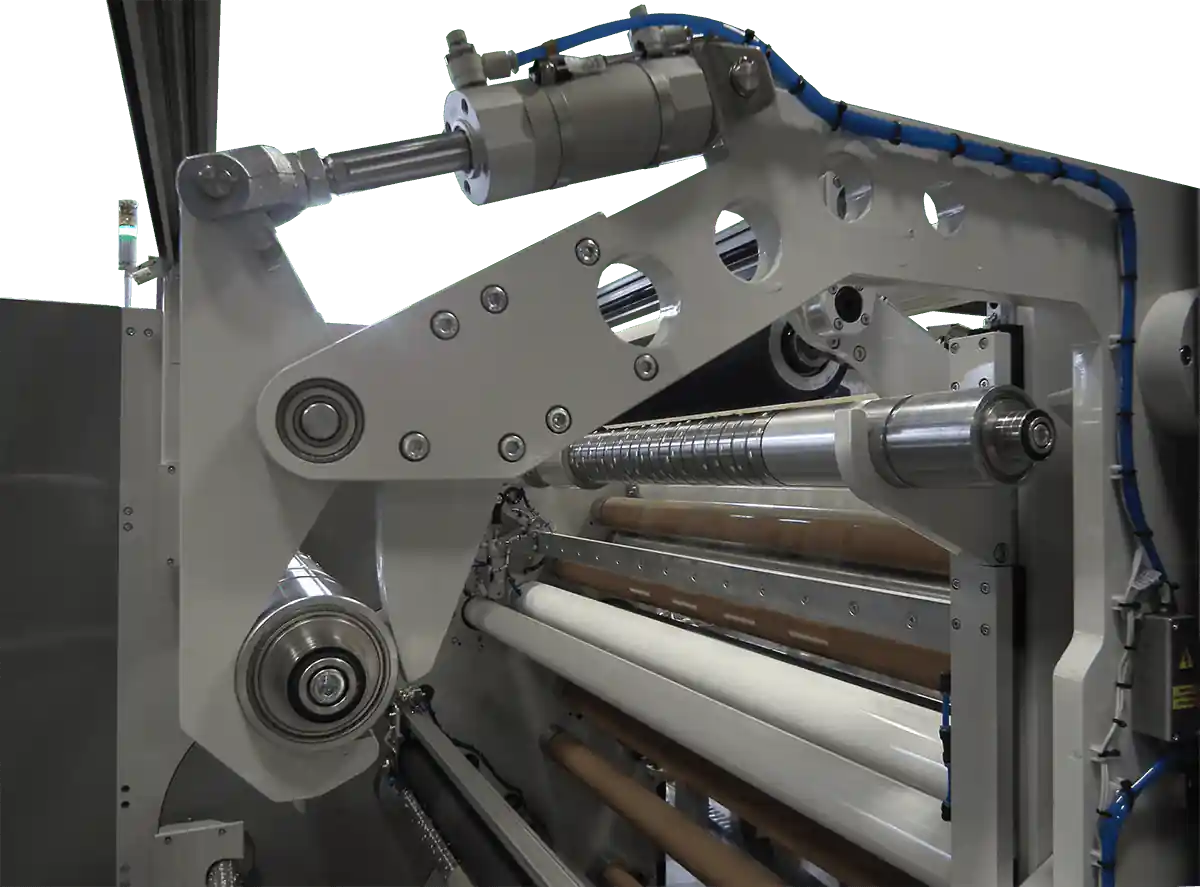

A key advantage of the Diamond T is its exclusive turret shaft support technology, which ensures rewind shafts remain completely supported throughout the entire turreting cycle. This unique feature allows for exceptionally fast cycle times, from the moment the machine stops at a preset length to when the next run is underway, boosting overall productivity.

Capable of accommodating all common slitting methods, the Diamond T turret slitter rewinder delivers top-quality slitting and rewinding across the widest range of substrates with maximum speed and precision.

  • Integrated shaftless unwind stand, or separated from the main frame if required
  • Electric roll lifting system with no hydraulics involved
  • Full web guiding with ASHE proprietary edge guiding system for all materials
  • Built-in splicing table at unwind for seamless roll joining
  • Multiple slitting formats supported: razor, rotary shear, and crush cut
  • Vacuum pull roller technology for accurate tension isolation
  • Laser-assisted knife positioning for improved accuracy and setup speed
  • ASHE differential (friction) winding shafts requiring no lubrication
  • Antistatic equipment included for enhanced safety during operation

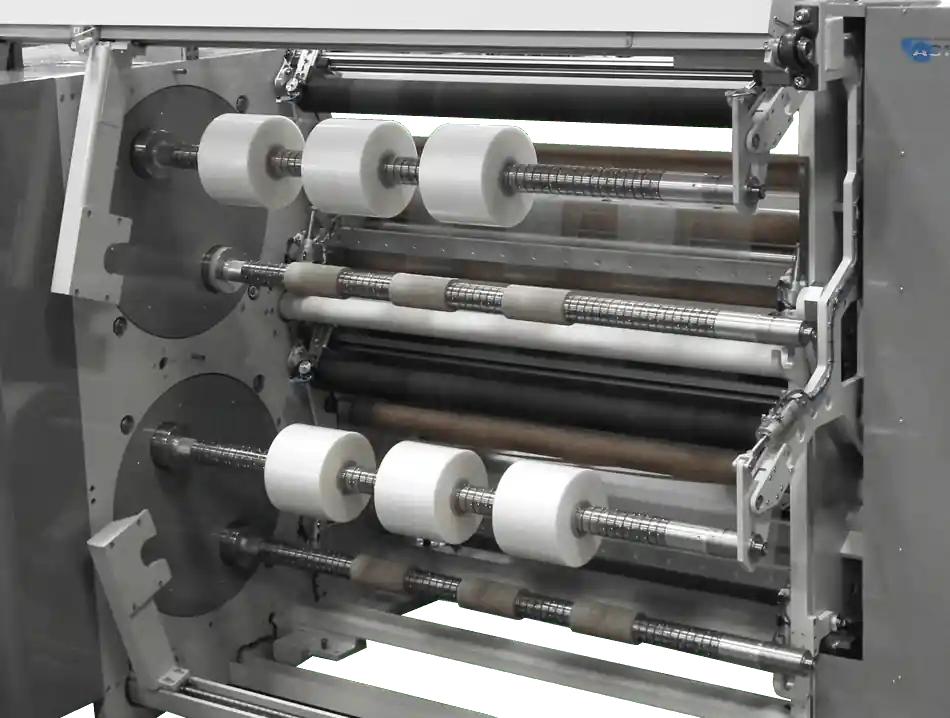

  • Duplex turret rewind for maximum throughput with changeover times as low as 30 seconds

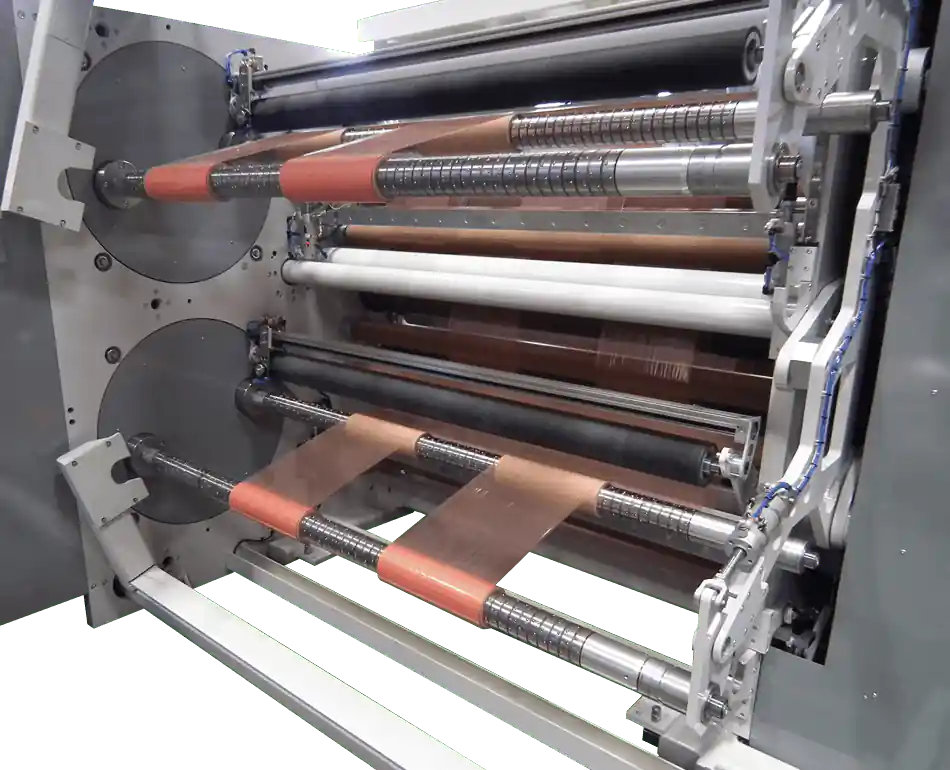

  • Turret shaft support system ensuring rewind shafts remain stable throughout the cycle
  • Automatic cross-cut system for precise cutting and transfer onto a new core

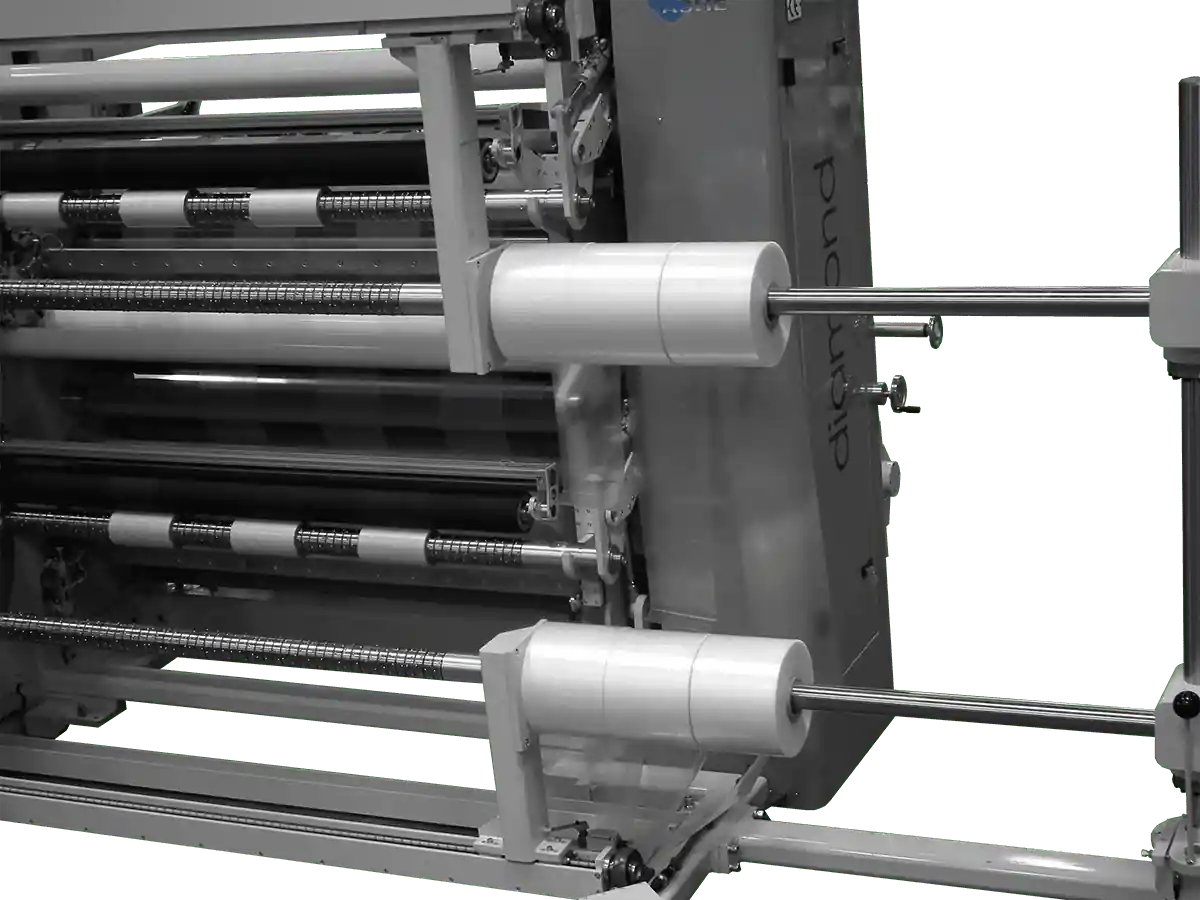

  • Wide range of unloading systems available to suit operational needs
  • Full compatibility for integration with ancillary equipment
Material width 1000mm (40″) to 1850mm (73″)
Parent roll diameter 1000mm (40″)
Maximum rewinding diameter 610mm (24″)
Slitting methods Razor
Rotary Shear
Crush
Slitting widths Minimum 25mm (1″)
Machine speed 500m/min (1640ft/min)
